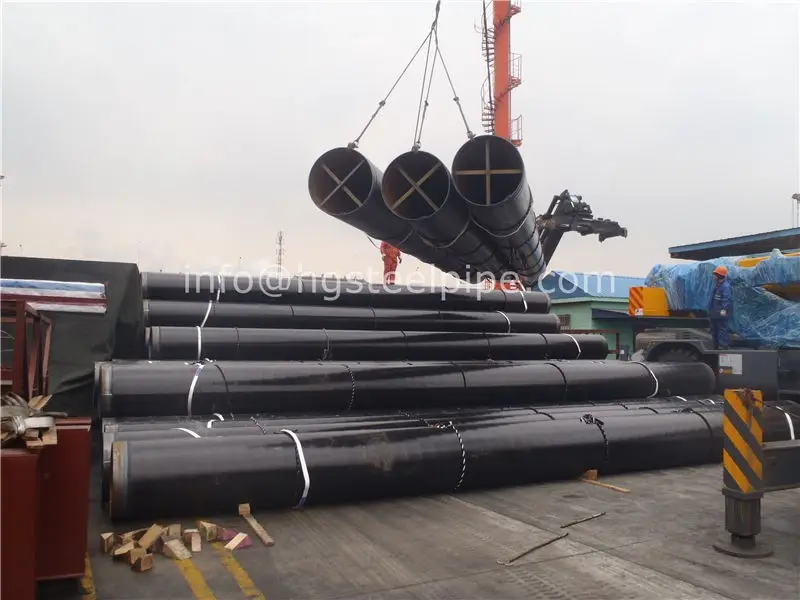

API 5L GR.X65 LSAW steel pipe

Size : OD:406-1422.40mm WT:1.65-40mm, Length: 6mtr-20mtr

Standard & Grade :API 5L PSL1./ PSL2. GR.B,X42, X45, X50, X60, X60, X65, X70, X80

Ends:Square Ends/Plain Ends (straight cut, saw cut, torch cut), Beveled/Threaded Ends

Coating: 3PE Coating;3PP Coating;FBE Coating;Epoxy Coating;Special Painting

The process of Lsaw steel pipe:

Plate feeding → Edge Milling and Beveling → Board Probe → Edge Crimping →molding→Slag→Track Pre-Welding → Tab Welding → Inside Welding → Slag → Outside Welding → Tab Removal → Ultrasonic Inspection → X-ray Inspection → Mechanical Expansion → Flame Flat → Hydro-static Testing → Ultrasonic Inspection for pipe end and welding seam → Weld and Pipe End X-ray Inspection → Tube end weld grinding → End Facing and Beveling → Weighing and measuring → Spray paint Marking → Final Inspection → Storage → Storage and Shipment

STANDARD OF LSAW STEEL PIPE

tandard	Grade	Chemical Composition(%)							Tensile STrength(min)	Yield Strength(min)
		c	Mn		P		S		Mpa	Mpa
API 5L PSL1	A	0.22		0.90		0.030		0.030	335	210
	B	0.28		1.20		0.030		0.030	415	245
	X42	0.28		1.30		0.030		0.030	415	290
	X46	0.28		1.40		0.030		0.030	435	320
	X52	0.28		1. 40		0.030		0.030	460	360
	X56	0.28		1.40		0.030		0.030	490	390
	X60	0.28		1.40		0.030		0.030	520	415
	X65	0.28		1.40		0.030		0.030	535	450
	X70	0.28		1.40		0.030		0.030	570	485

DIMENSION TOLERANCES OF LSAW STEEL PIPE

Standard	Standard
Standard	SY/T5040-2000	Y/T5037-2000	SY/T9711.1-197	ASTM A252	AWWA C200-9	API 5L PSL1
Tube end OD deviation	± 0.5%D	± 0.5%D	-0.79mm～+2.38	<± 0.1%T	<± 0.1%T	± 1.6mm
Wall thickness	± 10.0%T	D<508mm, ±12.5%T	- 8%T～+19.5%T	<- 12.5%T	-8%T～+19.5%T	5.0mm
Wall thickness	± 10.0%T	D>508mm, ±10.0%T	- 8%T～+19.5%T	<- 12.5%T	-8%T～+19.5%T	T≥15.0mm, ±1.5m
