Alloy Steel tube

Hollow section,Coating pipe,Seamless line pipe
ASTM A213 T9 Alloy Steel Seamless tubes
ASTM A213 T9 Alloy Steel Seamless tubes

ASTM A213 T9 Alloy Steel Seamless tubes

Size : OD: 9.52-630mm WT: 0.59-40mm, Length: 0.5mtr-20mtr

Standard & Grade :ASTM A 213,ASME SA213/SA213M Grade T2, T5, T9, T11, T12, T22, T91, T92

ASTM A213 Gr. T11 Alloy Seamless Steel Tube, ASME SA213 T11 Alloy steel tubes Manufacturer; ASTM A213 Gr. T11 Alloy Steel SMLS Tubes exporter and supplier,Alloy Steel Grade T11 seamless EN10216-2 Tube

Tubing End: Bevel end, Plain end;

Pipe Process of ASME SA213 T9 Steel tube / ASTM A213 T9 Alloy Steel Seamless tubes:

Round Billet → Material Inspection → Grinding → Cut to Length → Heating → Piercing → Bite mandrel → Hot Rolled → Get Rid of Mandrel → Heat Treatmen t → Size Reducing → Cooling → Straightening → Semi Manufactured Product → Corp End Cutting off → UT/ET TEST or Hydrostatic Test → Marking → Packing → Warehousing

ASTM /ASME

Product Name

Executive Standard

Dimension (mm)

Steel Code / Steel Grade

Seamless Ferritic and Austentic Alloy Steel Boiler, Superheater and Heat-Exchanger Tubes

ASTM A213

Ø9.52~630 x WT0.59~40

T2, T5, T9, T11, T12, T22, T91, T92

Seamless Ferritic Alloy Steel Pipes for High Temperature Use

ASTM A335

Ø10.3~1200 x WT2~200mm

P5, P9, P11, P12, P22, P91, P92

Seamless Carbon and Alloy Steel for Mechanical Tubing

ASTM A519

Ø10.3~323.9 x WT1.65~40mm

4130, 4130X, 4140, 4145


EN

Product Name

Executive Standard

Dimension (mm)

Steel Code / Steel Grade

Seamless Ferritic Alloy Steel Pipes for High Temperature Use

EN10216-2

Ø10.3~323.9 x WT1.65~40mm

13CrMo4-5, 1-CrMo9-10, X10CrMoVNb9-1, 15NiCuMoNb5-6-4

Application of ASME SA213 T9 Steel tube / ASTM A213 T9 Alloy Steel Seamless tubes:

Alloy steel seamless pipe is ideally suitable for chemical, petrochemicals and other energy-related applications. It has characteristics of high corrosion resistance and can be used in a wide range of industrial sectors.
- Chemical industries
- Petrochemical industries
- Energy-related applications

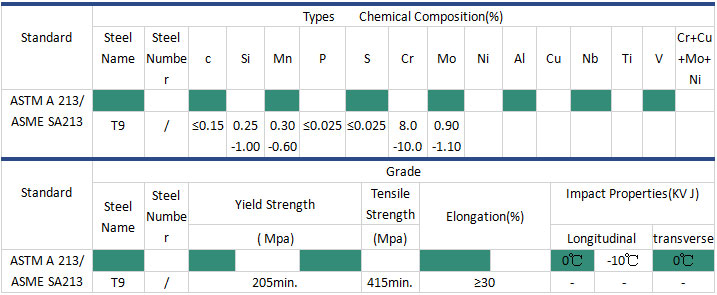

Chemical Composition and Mechanical Properties of ASME SA213 T9 Steel tube / ASTM A213 T9 Alloy Steel Seamless tubes:

DIMENSION TOLERANCES OF ASME SA213 T9 Steel tube / ASTM A213 T9 Alloy Steel Seamless tubes:
