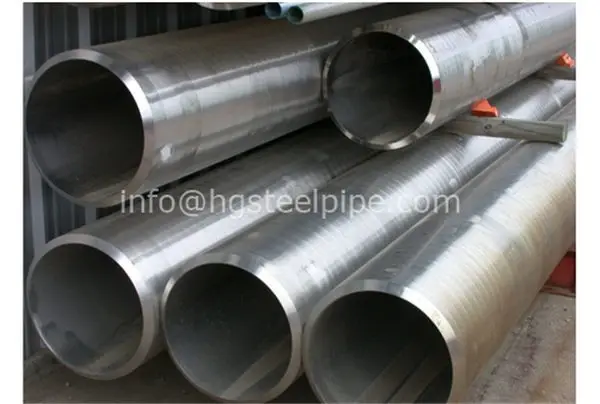

ASTM A790 Duplex Steel S31803 tubes
ASTM A790 Duplex Steel S31803 tubes

ASTM A790 Duplex Steel S31803 tubes

Size : OD: 6.0-630mm WT: 0.5-45mm, Length: 0.5mtr-20mtr

Standard & Grade : ASTM A790/ A778/ A789 /A928 /A240, ASME SA790/SA790M Grade S31803, S32205, S32750, S32760, ASTM A182, F51 Pipe and Fittings

ASTM A790 S32205 Duplex Steel Pipe & Tube in Seamless, ASME SA790 S32205 Duplex steel tubes and Pipes in Welded; ASTM A789 S32205 Stainless Steel SMLS Tubes

Tubing End: Bevel end, Plain end; Threaded;

A790 pipe Manufacturing Types

ASTM A790 stainless steel pipe and tube covers following manufacturing types (Including hot finished or cold finished):
a. Seamless Pipe (SMLS): It covers stainless steel seamless pipe or tube in hot rolling or cold drawn.
b. Welded Pipe (WLD): Welded by an automatic welding process that does not add filler metal when welding.
c. Cold Worked Pipe (HCW pipe): The heavy cold-worked pipe that apply cold working of not less than 35% reduction in thickness of both wall, and welded to the welded pipe prior to final annealing. Do not use fillers during welding.
d. Welded and HCW pipe: Welded pipe and HCW pipe of 14 and smaller than NPS 14 shall have a single longitudinal weld. After approval by the purchaser, the welded pipe and HCW pipe with an NPS greater than NPS 14 shall have a single longitudinal weld or shall be manufactured by forming and welding two longitudinal sections of flat stock. So each welds are to be tested, inspected, inspected or treated.



Pipe Process of ASME SA790 S32205 Stainless Steel Seamless tube / ASTM A790 S32205 Stainless Steel Seamless Pipes
Round Bar → Inspection & Analysis → Cut to Length → Coutering → Peel → Heating → Perforation → Inspection of Size → Pickling → Inspection of Surface → Lubricating  → Cold-Drawing(Cold-Rolling) → Degreasing → Annealing→ Straightening → Cut → Corp End Cutting off → Pickling/Passivating → Final Inspection( UT/ET TEST or Hydrostatic Test) → Marking → Packing → Shipping

Product manufacturing standard:

GB

ASTM/ASME

JIS

DIN

EN

GB/T14975-2002

A213/A213M

G3446 G3447

DIN2462

EN10216-5

GB/T14976-2002

A249/A249M

G3448 G3459

DIN2463

EN10217-7

GB13296-2007

A790/A790M

G3463 G3468

DIN17457


GB/T12771-2008

A269 A358


DIN17458


GB/T12770-2000

A511 A688




GB/T19228.2

A778 A789




HG20537.2-92

A790




HG20537.3-92

B163 B167




HG20537.4-92

B338 B407




SH3501-2002

B423 B444





B622 B668





B677 B829




Steel Grades:

Austenitic

Duplex

Nickel Stainless

Ti

Ferrite

304/L/H

S31500

600625

Grade1

409L

310S/H

S32101

800825

Grade2

439

316/L/H

S32003

400

Grade3


317/L

S32304

N06985



321/H

S31803

N10276



347/H

S32205




S30432

S32750




S31042

S32760




904L





6Mo(S79054)





Application of ASME SA790 S31803 Duplex Steel tubes / ASTM A790 S31803 Stainless Steel tubes:

1. Petrochemical industry;
2. Oil Refineries industry;
3. Chemical Plants;
4. Low-pressure heater;
5. Offshore Oil platform;
6. Power and Nuclear Power industry
7. The Machinery and Cement industry;

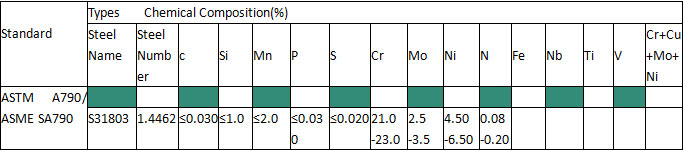

Chemical Composition of ASME SA790 S31803 Duplex Steel tubes / ASTM A790 S31803 Stainless Steel tubes:

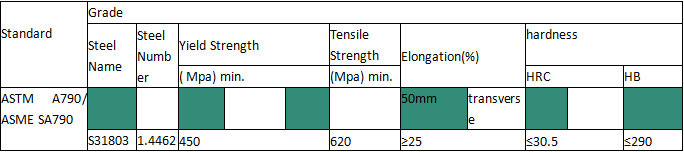

Mechanical Properties of ASME SA790 S31803 Duplex Steel tubes / ASTM A790 S31803 Stainless Steel tubes:


Grade Specifications of ASME SA790 S31803 Duplex Steel tubes / ASTM A790 S31803 Stainless Steel tubes:

DIMENSION Tolerance of ASME SA790 S31803 Duplex Steel tubes / ASTM A790 S31803 Stainless Steel tubes:

Wall Thickness

Permitted Variations in Wall thickness (%)

Tolerance, % from Nominal

NPS Designator

Over

Under

All

Not specified

-12.5

where: t=Nominal Wall Thickness D=Ordered Outside Diameter




Outside Diameter

Length(mm)

Permitted Variations in Outside Diameter (mm)

NB

Tolerance

Tolerance

- 4

±0.79

+6 .4 / -0 mm

5 - 8

+ 1.58 / -0.79

10-18

+ 2.37 / -0.79

20- 24

+3.18 / -0.79
