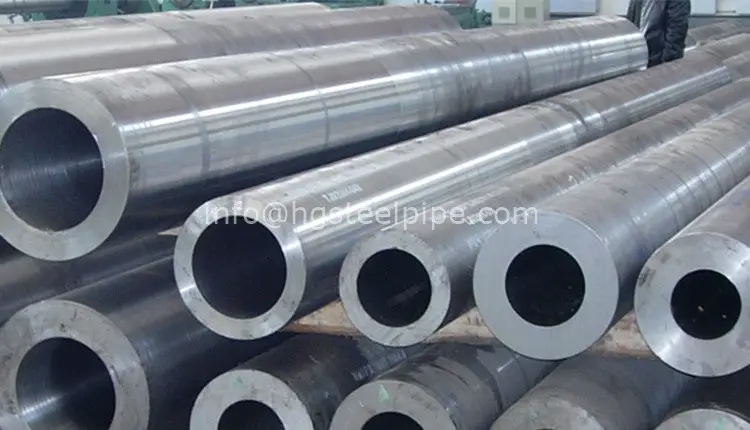

ASTM A 519 1020 seamless steel tubes

Size : OD: 10.3-323.9mm, WT: 1.65-40mm, Length: 0.5mtr-20mtr

Standard & Grade : ASME SA519 / ASTM A519 Grade 4130, 4130X, 4140, 4145,1026, 1020, 1045

ASME SA 519 / ASTM A519 GR.1020 boiler pipes; A519 pipes; Grade 1020 ASTM A519 carbon steel tube; ASTM A519 GR. 1020 mechanical pipes; ASTM A 519 GR.1020 carbon steel pipe; Grade 1020 SEAMLESS PIPE;

Tubing End: Bevel end, Plain end;

Pipe Process of ASME SA519 1020 Steel tube / ASTM A519 1020 Alloy Steel Seamless tubes:

Round Billet → Material Inspection → Grinding → Cut to Length → Heating → Piercing → Bite mandrel → Hot Rolled → Get Rid of Mandrel → Heat Treatmen t → Size Reducing → Cooling → Straightening → Semi Manufactured Product → Corp End Cutting off → UT/ET TEST or Hydrostatic Test → Marking → Packing → Warehousing

ASTM /ASME
Product Name	Executive Standard	Dimension (mm)	Steel Code / Steel Grade
Seamless Ferritic and Austentic Alloy Steel Boiler, Superheater and Heat-Exchanger Tubes	ASTM A213	Ø9.52~630 x WT0.59~40	T2, T5, T9, T11, T12, T22, T91, T92
Seamless Ferritic Alloy Steel Pipes for High Temperature Use	ASTM A335	Ø10.3~1200 x WT2~200mm	P5, P9, P11, P12, P22, P91, P92
Seamless Carbon and Alloy Steel for Mechanical Tubing	ASTM A519	Ø10.3~323.9 x WT1.65~40mm	4130, 4130X, 4140, 4145, 1026, 1020, 1045

EN
Product Name	Executive Standard	Dimension (mm)	Steel Code / Steel Grade
Seamless Ferritic Alloy Steel Pipes for High Temperature Use	EN10216-2	Ø10.3~323.9 x WT1.65~40mm	13CrMo4-5, 1-CrMo9-10, X10CrMoVNb9-1, 15NiCuMoNb5-6-4

Application of ASME SA519 1020 Steel tube / ASTM A519 1020 Alloy Steel Seamless tubes :

Our ASTM A519 GR. 1020 Boiler Piping is also used in numerous industries such as drainage system, water supplying, oil and gas projects, and many others. The presented ASME SA 519 GR.1020 Boiler Tubes are as well extensively used in a number of industries and house hold channels. These ASME SA 519 GR.1020 Boiler Pipes are being used in transmission line, framing, reinforcement, bracket and trimming. With respect to our rich industry knowledge and experience, we are dedicated in providing ASTM A519 GR. 1020 Boiler Tubes to our admired customers.

Chemical Composition (%) of ASME SA519 1020 Steel tube / ASTM A519 1020 Alloy Steel Seamless tubes :

Grade	C	Mn	P≤	S≤
1020	0.18-0.23	0.30-0.60	0.040	0.050

Other Types of ASME SA 519 / ASTM A519 GR.1020 Pipes and Tubes

ASME SA / ASTM A519 GR.1026 Boiler Pipe	GR.1026 ASME SA / ASTM A519 Boiler Tube
ASTM A519 GR.1020 Boiler Pipes Supplier	SA519 / A519 GR.1020 Boiler Tubes
GR.1020 ASME SA 519 Seamless Steel Pipes Exporter	ASTM A519 GR.1020 Carbon Steel Seamless Tubing Stockist
A519 GR.1020 Mechanical Pipes in Iraq	1020 ASTM A519 Carbon Steel Mechanical Tubes
ASTM A519 GR.1020 Cold drawn Seamless Steel Pipe	A519 GR.1020 Cold drawn Seamless Steel Tube Exporter
ASTM A519 GR.1020 Hot Finished Seamless Steel Pipe	A519 / SA519 Grade 1020 Hot Finished Seamless Steel Tubes
IBR Approved GR.1020 ASTM A519 Pipe	IBR Approved ASTM A519 GR.1020 Tubing Stockist
ASTM A519 Steam Boiler Pipes in Peru	ASTM A519 Steam Boiler Tubes Stockholder
High Quality GR.1020 A519 Boiler Pipes in Malaysia	GR.1020 A519 High Quality Boiler Tubes Manufacturer

Test and Delivery Condition of ASME SA519 1020 Steel tube / ASTM A519 1020 Alloy Steel Seamless tubes:

The tube be 100% eddy current tested
Ultrasonic test is as option
Straightness ≤1mm/1000mm

Roughness: Ra ≤0.8

Condition

•Hot finished
•Cold worked

Heat treatment
•A: Annealed
•N: Normalized
•QT: Quenched and tempered
•SR: Stress relieved or finish annealed

Mechanical Test Requirements of ASME SA519 1020 Steel tube / ASTM A519 1020 Alloy Steel Seamless tubes:

Hardness Test, Tension Tests, Nondestructive tests, Steel Cleanliness, Hardenability, Flaring Test.
Note:
•Mill test certificates will be issued according to EN10204.3.
•All tubes shall be supplied as per applicable ASTM A519 Specification.
•The tubes Shall be Seamless and the test Methods and Definitions for mechanical Testing of Steel Products.
•Orders for material under A519 should include the Quantity (Feet, weight, or number of pieces), Name of material (seamless carbon or alloy steel mechanical tubing), Form (round, square, rectangular or special shapes).
•Orders for material under A519 should provide delivery condition (A, N, QT, SR).

Packing and Marking of ASME SA519 1020 Steel tube / ASTM A519 1020 Alloy Steel Seamless tubes:
•Packed in bundles, wrapped in plastic, and suitably protected for sea-worthily delivery or as requested.
•Marking should according to MIL-STD-129 for Military agencies and in accordance with Fed. Std. No.123 for civil agencies including not limited: Standard, graded, size, heat no. lot no.
