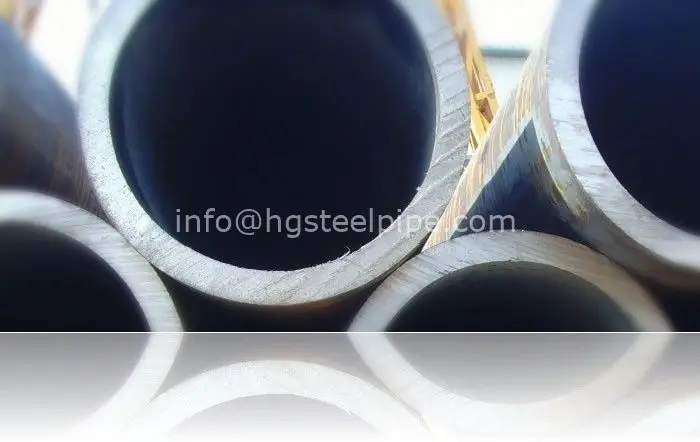

ASTM A 519 1026 seamless steel tubes
ASTM A 519 1026 seamless steel tubes

ASTM A 519 1026 seamless steel tubes

OD: 10.3-323.9mm, WT: 1.65-40mm, Length: 0.5mtr-20mtr

Standard & Grade : ASME SA519 / ASTM A519 Grade 4130, 4130X, 4140, 4145,1026, 1020, 1045

GRADE 1026 SEAMLESS PIPE , ASTM A519 GRADE 1026 COLD DRAWN SEAMLESS STEEL PIPE DEALERS, IBR APPROVED ASTM A519 GR.1026 PIPES AND TUBING, ASME A519 GR.1026 SEAMLESS HOT-FINISHED MECHANICAL TUBING MANUF

Tubing End: Bevel end, Plain end;

Pipe Process of ASME SA519 1026 Steel tube / ASTM A519 1026 Alloy Steel Seamless tubes:

Round Billet → Material Inspection → Grinding → Cut to Length → Heating → Piercing → Bite mandrel → Hot Rolled → Get Rid of Mandrel → Heat Treatmen t → Size Reducing → Cooling → Straightening → Semi Manufactured Product → Corp End Cutting off → UT/ET TEST or Hydrostatic Test → Marking → Packing → Warehousing


ASTM /ASME

Product Name

Executive Standard

Dimension (mm)

Steel Code / Steel Grade

Seamless Ferritic and Austentic Alloy Steel Boiler, Superheater and Heat-Exchanger Tubes

ASTM A213

Ø9.52~630 x WT0.59~40

T2, T5, T9, T11, T12, T22, T91, T92

Seamless Ferritic Alloy Steel Pipes for High Temperature Use

ASTM A335

Ø10.3~1200 x WT2~200mm

P5, P9, P11, P12, P22, P91, P92

Seamless Carbon and Alloy Steel for Mechanical Tubing

ASTM A519

Ø10.3~323.9 x WT1.65~40mm

4130, 4130X, 4140, 4145, 1026, 1020, 1045


EN

Product Name

Executive Standard

Dimension (mm)

Steel Code / Steel Grade

Seamless Ferritic Alloy Steel Pipes for High Temperature Use

EN10216-2

Ø10.3~323.9 x WT1.65~40mm

13CrMo4-5, 1-CrMo9-10, X10CrMoVNb9-1, 15NiCuMoNb5-6-4

Application of ASME SA519 1026 Steel tube / ASTM A519 1026 Alloy Steel Seamless tubes :

Our ASTM A519 GR. 1026 Boiler Piping is also used in numerous industries such as drainage system, water supplying, oil and gas projects, and many others. The presented ASME SA 519 GR.1026 Boiler Tubes are as well extensively used in a number of industries and house hold channels. These ASME SA 519 GR.1026 Boiler Pipes are being used in transmission line, framing, reinforcement, bracket and trimming. With respect to our rich industry knowledge and experience, we are dedicated in providing ASTM A519 GR. 1026 Boiler Tubes to our admired customers.


GR.1026 A519 Seamless Pipes & Tubes Chemical Composition :

Grade

C

Mn

P≤

S≤

1026

0.22-0.28

0.60-0.90

0.040

0.050


ASME SA519 GR.1026 Standard Pipes Mechanical Properties :

Properties

Metric

Imperial

Tensile strength

490 MPa

71100 psi

Yield strength

415 MPa

60200 psi

Bulk modulus (typical for steel)

140 GPa

20300 ksi

Shear modulus (typical for steel)

80.0 GPa

11600 ksi

Elastic modulus

190-210 GPa

27557-30458 ksi

Poisson’s ratio

0.27-0.30

0.27-0.30

Elongation at break (In 50 mm)

15.00%

15.00%

Reduction of area

40.00%

40.00%

Hardness, Brinell

143

143

Hardness, Knoop (converted from Brinell hardness)

163

163

Hardness, Rockwell B (converted from Brinell hardness)

78

78

Hardness, Vickers (converted from Brinell hardness)

149

149

Machinability (based on AISI 1212 steel as 100 machinability.

The machinability of Group I bar, rod,

and wire products can be improved by cold drawing.)

75

75

Dimensions :

Outer Diameter

Wall Thickness

Length

Cold Drawn

3/4 to 15 Inch

1/8 to 1 1/2 Inch

12000 mm max

Hot Rolled

2  to 30 Inch

1/8 to 8 Inch

12000 mm max

Other Types of ASME SA 519 / ASTM A519 GR.1026 Pipes and Tubes

ASME SA / ASTM A519 GR.1026 Boiler Pipe

GR.1026 ASME SA / ASTM A519 Boiler Tube

ASTM A519 GR.1026 Boiler Pipes Supplier

SA519 / A519 GR.1026 Boiler Tubes

GR.1026 ASME SA 519 Seamless Steel Pipes Exporter

ASTM A519 GR.1026 Carbon Steel Seamless Tubing Stockist

A519 GR.1026 Mechanical Pipes in Iraq

1026 ASTM A519 Carbon Steel Mechanical Tubes

ASTM A519 GR.1026 Cold drawn Seamless Steel Pipe

A519 GR.1026 Cold drawn Seamless Steel Tube Exporter

ASTM A519 GR.1026 Hot Finished Seamless Steel Pipe

A519 / SA519 Grade 1026 Hot Finished Seamless Steel Tubes

IBR Approved GR.1026 ASTM A519 Pipe

IBR Approved ASTM A519 GR.1026 Tubing Stockist

ASTM A519 Steam Boiler Pipes in Peru

ASTM A519 Steam Boiler Tubes Stockholder

High Quality GR.1026 A519 Boiler Pipes in Malaysia

GR.1026 A519 High Quality Boiler Tubes Manufacturer

We can produce :

A519 aisi 1026 seamless steel pipe/tube supplier, a519 1026 steel pipe, aisi 1026 carbon steel (uns g10260) pipes exporter, astm a519 grade 1026 are certified with en 10204 type 3.1/3.2. ibr, nace, hic, igc, impac , astm a519 boiler pipes gr. 1026, asme sa 519 gr. 1026 boiler pipe, asme sa / astm a519 gr.1026 boiler tubes exporter, a 519 grade 1026 seamless carbon steel tube and pipe dealer, high quality astm a519 1026 seamless pipe stockist, grade 1026 seamless pipe, astm a519 grade 1026 tubing, astm a519 1026 pipes, cold drawn seamless steel pipe gr.1026 astm 519


astm a519 grade 1026 seamless pipes and tubings stockholder, 1026 tubings seamless steel tubings ferritic carbon steel tubings distributor, astm a519 seamless tubings asme sa 519 grade 1026, astm a519 grade 1026 british standard bs 6323 : pt 4 grade cfs 7 – a 370e59mil-std-129mil-std-163 steelfed. std. no. 140 european standard din specification – din grade 20mn5 pipes and tubes, hot deep galvanised pipes with threaded ends are provided, pipes and tubes manufactured as per astm a519 grade 1026 are certified with en 10204 type 3.1/3.2. IBRNACEHICIGCIMPACT


seamless carbon and alloy steel mechanical tubing astm a519 grade 1026 carbon steel seamless tubings are medium carbon steel tubings with 0.22-0.28 carbon content with combination of 0.60-0.90 manganese, astm a519 grade 1026 carbon steel seamless tubings are most commonly used for general purpose applications worldwide, astm a519 grade 1026 tubings are ductile and strong tubings with long wearing properties, a519 grade 1026 seamless hot finished mechanical tubing and pipes, astm a519 grade 1026 mechanical pipes and tubing
