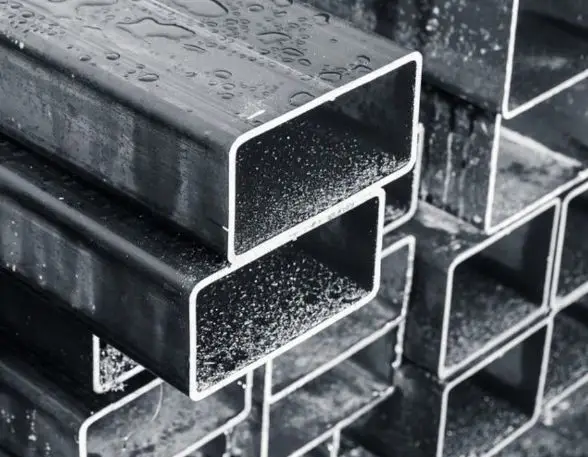

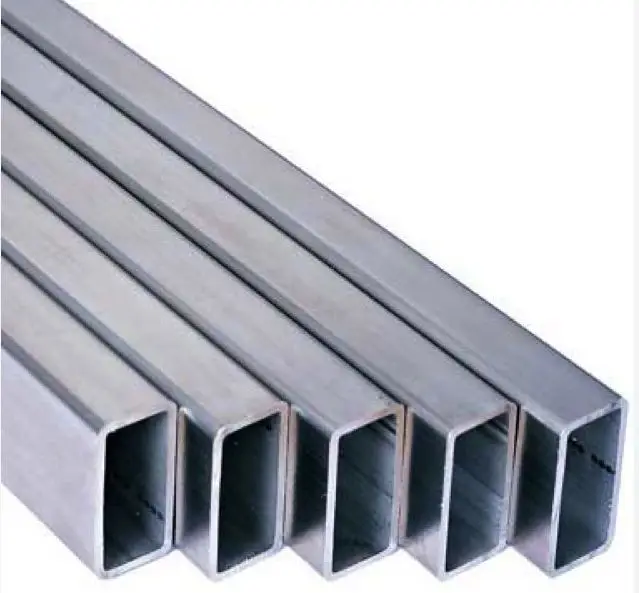

Rectangular tube is formed from coil and then ran through a series of dies.lt's welded from the inside to form its shape. Rectangular tubes are generally used for maintenance and structural purposes.
Some examples of square tubing applications would be building construction, railings, and sign posts. They are measured by their outside dimensions and their wall thickness.
square Tube is available in the following metal types:Alloy Steel
Mild Steel Carbon Steel stainless Steel
Rectangular tube has similar uses to SHS and is used for both industrial and construction applications.
We offer rectangular steel tubing in carbon steel, galvanized steel, and stainless steel in both mechanical and structural grades. Our selection of rectangular steel tube sizes includes a wide array, ranging from 3/8" x 1-1/2" up to 12" x 20".
|
MM |
0.65 |
0.80 |
0.90 |
0.95 |
1.00 |
1.20 |
1.50 |
2.00 |
2.50 |
|
|
12.5 x 12.5 |
0.075 |
0.091 |
0.102 |
0.107 |
0.112 |
0.133 |
0.163 |
|
|
|
|
20 x 20 |
|
|
|
0.176 |
0.184 |
0.220 |
0.271 |
0.354 |
0.433 |
0.508 |
|
25 x 25 |
|
|
|
0.221 |
0.232 |
0.277 |
0.343 |
0.450 |
0.553 |
0.652 |
|
30 x 30 |
|
|
|
0.267 |
0.280 |
0.335 |
0.415 |
0.516 |
0.673 |
0.796 |
|
38 x 38 |
|
|
|
0.340 |
0.358 |
0.427 |
0.531 |
0.700 |
0.866 |
1.027 |
|
40 x 40 |
|
|
|
0.358 |
0.376 |
0.450 |
0.559 |
0.738 |
0.898 |
1.084 |
|
50 x 50 |
|
|
|
|
0.473 |
0.565 |
0.703 |
0.930 |
1.153 |
1.372 |
|
Steel Grades |
Chemical composition( cast or product analysis ％ max. |
||||||||||
|
C |
Si |
Mn |
P |
S |
Cr |
Mo |
Al |
Ti |
Micro-alloying elements |
CE |
|
|
C250 C250L0 |
0.12 |
0.05 |
0.5 |
0.03 |
0.03 |
0.15 |
0.1 |
0.1 |
0.04 |
0.03 |
0.25 |
|
C350 C350L0 |
0.2 |
0.25 |
1.6 |
0.03 |
0.03 |
0.3 |
0.1 |
0.1 |
0.04 |
0.15 |
0.43 |
|
C450 C450L0 |
0.2 |
0.25 |
1.7 |
0.03 |
0.03 |
0.3 |
0.35 |
0.1 |
0.04 |
0.15 |
0.43 |
|
Steel Grade |
Minimum yield strength |
Minimum tensile strength |
Minimum elongation as a propertion of the gauge length of5.65 ％ |
|||||
|
Circular hollow sections |
Rectangular hollow sections |
|||||||
|
≦15 |
>15≦30 |
30 |
≦15 |
>15≦30 |
30 |
|||
|
C250,C250L0 |
250 |
320 |
18 |
20 |
22 |
14 |
16 |
18 |
|
C350,C350L0 |
350 |
430 |
16 |
18 |
20 |
12 |
14 |
16 |
|
C450,C450L0 |
450 |
500 |
12 |
14 |
16 |
10 |
12 |
14 |
|
Characteristic |
Pipe (CHS) |
Rectangular & Square (RHS / SHS) |
|
|
External dimensions (d, b, d0) |
±1% with minimum of ±0.5mm& maximum ±10% |
±1% with minimum of ±0.5mm |
|
|
Thickness (t) |
d≤406.4mm |
±10% |
±10% |
|
|
d>406.4mm |
±10% with max of ±2mm |
|
|
All Sections has a mass not less than 96% of specified nominal mass |
|||
